Rail Design

Top Channel Profile. We offer a few options, each design to meet a different need or preference. Choose from the following to see which profile best fits your space.

1. - Breadloaf- This classic and timeless design is square with a curved top that resembles a broadleaf. It is 2.5 inches wide by 2 inches tall.

2. - Rectangle- This modern design is often preferred to set a drink on or anything small enough to sit on a 3 inch wide flat top. It is 3 inches wide by 1.5 inches tall.

3. - Round- This design is almost completely round with a flat bottom to support the posts and pickets. It is proffered for a larger graspable profile. It is 2.3 inches wide by 1.87” tall.

4. - Small Rectangle with eased edges- This design is mostly used for handrails on stairs or ramps. It offered a fully graspable profile at adheres to handrail code, but can also be used as a “Low Profile” top channel for interior rails. It is 2 inches wide by 1 inch tall with curved eased edges.

5. - Flat Bar- Typically 1/4 inch thick, this profile is mainly used to support a wood top channel where the wood is fastened to the flat bar with screws from underneath. It is typically 2 inches wide by 1/4 inch tall, but the width can vary depending on the post and wood topper selection.

6. - See our compete list of Top Channel Profiles with CAD dimensions.


Vertical Pickets or Balusters. We offer our standard square or round pickets with different diameter sizes. Looking for a more decorative picket design? Give us a call today to see if we have a selection to suit your preference.
1. - Square Pickets - Choose from 5/8 or 3/4 inch wide.
2. - Round Pickets - Choose from 5/8 or 3/4 inch wide.
3. - Ask us about our decorative custom design pickets.


Post Sizes. Posts are essential for providing support and stability to the railing system. They play a crucial role in ensuring safety while enhancing the overall design of your space. Choose from the following to see post size best fits your space.
1. - 2x2 inch square. This option comes standard for our exterior rail systems. It offers a symmetrical look to our standard square pickets.

2. - 2x1.5 inch rectangle. This option is typically used on stair rails or handrails to offer a “low profile” look while also better supporting our 2x1 inch top channel profile.

3. - 1.5x1.5 inch square. This option is also typically used on stairs rail or handrail for an even “lower profile” look.

4. - 4x4 inch square. This oversize posts brings a bold and eye-catching aesthetic that makes an impression that can be suitable for your space. It requires a bigger custom size top channel or wider flat bar to support a wood topper.


Bottom Channel. This supports the vertical pickets in between the railing posts. Picture an upside down “U” shaped channel with the pickets sitting on top and rises vertically to connect to the bottom of the top channel.
1. - 1.5x.75 inch “U-channel” for standard application.
2. - Other custom options available depending on application.

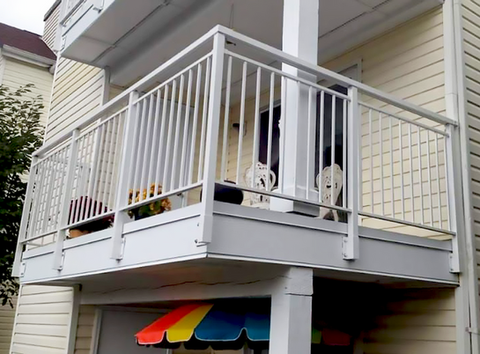

Mounting Type. This is the crucial connection point to your deck, stairs, or living area, providing essential support and safety. This mounting ensures that your railings are securely anchored, enhancing the stability of your space. Whether for aesthetic appeal or functional safety, choosing the right mounting type is vital for any home installation.
1. - Top Mount
2. - Fascia (Side) Mount


Plates Detail. The railing system features plates that are fully welded to each post, ensuring maximum stability and strength. Each plate is secured with four anchors, providing a robust and reliable structure. This design guarantees safety and durability for your railing needs.
1. - 4x4x1/4 inch. Standard for Top Mount.
2. - 5x5x1/2 inch- Standard for Fascia Mount
3. - Customizable plate sizes depending on application
